PVCHECKPRO

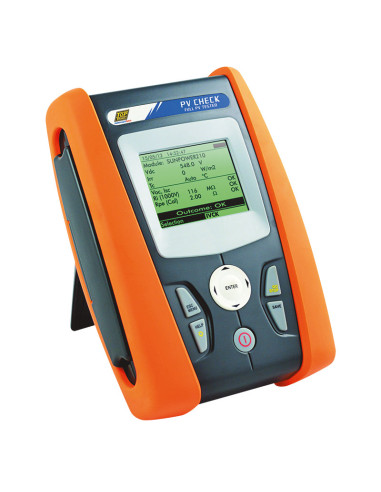

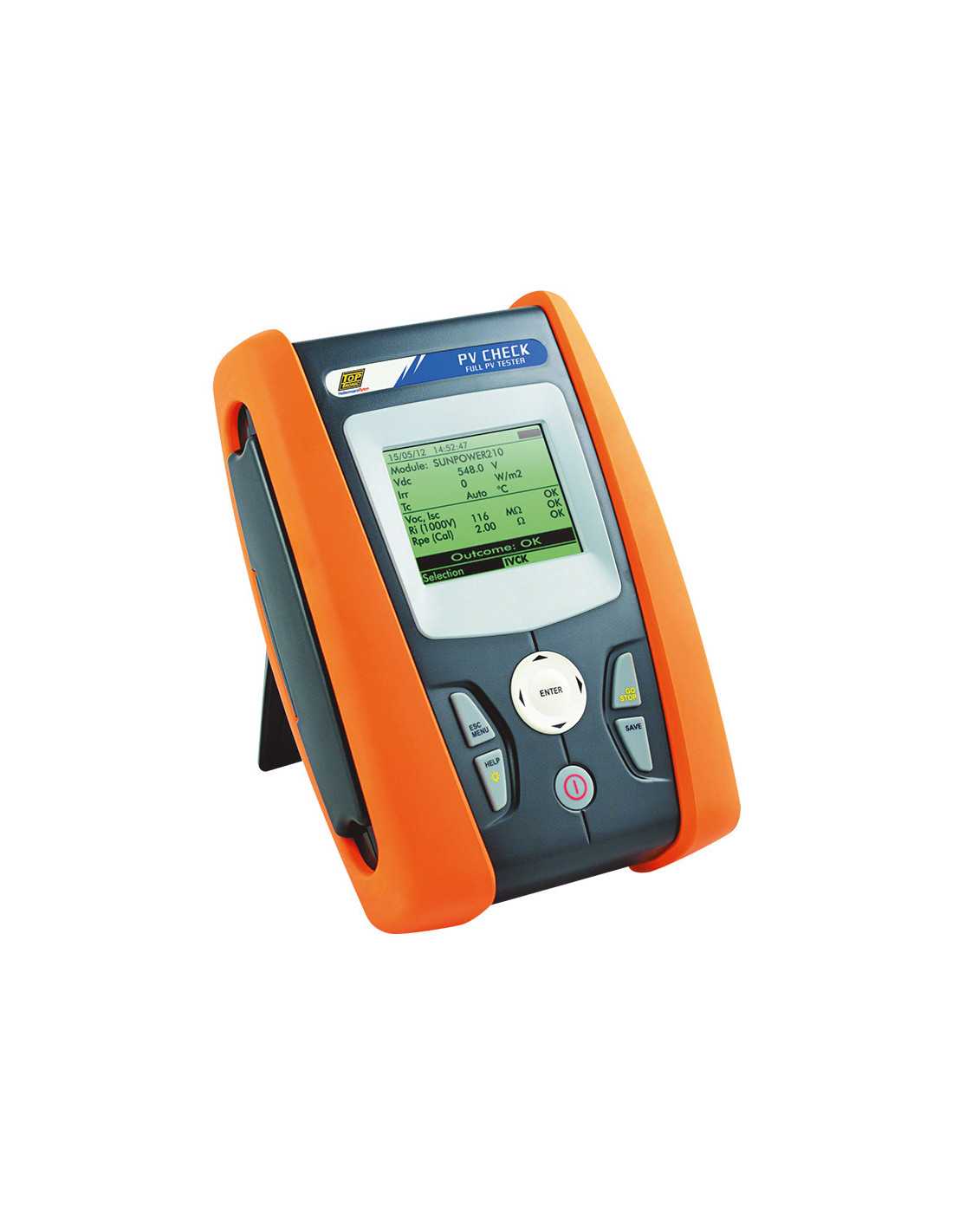

Solar Safety Tester
Each(1)
- Continuity of protective conductors with test current 200mA
- Insulation measurement with test voltage 250-500 and 1000VDC
- Open-circuit voltage (VOC) measurement up to 1000V DC
- Short-circuit current (ISC) measurement up to 15A DC
- DC voltage - DC current - DC power measurement
- Use of compensation relationships Cells/Environment on Pdc
- Internal database for managing up to 30 PV modules (30.000 modules by software)
- Test measurement of string operation
- Result for every measurement OK/NO
- Internal memory and optical USB output for PC connection (256kBytes)
- LCD display- 128x128pxl- with backlight
Limited Stock Available
Gross PriceR102,356.36
- Continuity of protective conductors with test current 200mA
- Insulation measurement with test voltage 250-500 and 1000VDC
- Open-circuit voltage (VOC) measurement up to 1000V DC
- Short-circuit current (ISC) measurement up to 15A DC
- DC voltage - DC current - DC power measurement
- Use of compensation relationships Cells/Environment on Pdc
- Internal database for managing up to 30 PV modules (30.000 modules by software)
- Test measurement of string operation
- Result for every measurement OK/NO
- Internal memory and optical USB output for PC connection (256kBytes)
- LCD display- 128x128pxl- with backlight
Height: 75.00 mm Width: 165.00 mm Weight: 1200.00 gms Depth: 235.00 mm
No reviews
Stock by Site(subject to prior sale)
| Johannesburg | Cape Town | Durban | Gqeberha |
| 1 | 1 | 0 | 0 |
